Cosgrove Quarry & Scout Camp
Northamptonshire Building Stone Atlas 2011 confirms that the Romans may have used Cosgrove Stone. The Romans may have first worked the disused quarries and underground limestone workings around the village of Cosgrove, near the Buckinghamshire border. Cosgrove Stone may be seen in some of the older buildings of the village, and the church has a 14C tower with mouldings thought to be of Cosgrove Stone. The stone is a cream-coloured, cross-bedded limestone with granular shell debris and little matrix. There were masons, whose materials came from the nearby quarries in Calverton, Cosgrove and Wolverton, carpenters and woodcarvers, thatchers and yelmers (men who prepared straw for thatching) all of whom are recorded in the rolls in the 15th and 16th centuries. Cosgrove Hall, built in the early 18C is faced in ashlar composed of a similar material to that of the church. The bridge built over the Grand Union Canal in 1800 at Cosgrove may also be of Cosgrove Stone.
Moorend Castle Yardley Gobion
notes by Dorothy Warren
Nothing is known of the castle built by de Ferrers, but it was probably never completed by him, as in 1348 the plague known as the Black Death swept across England, brought by soldiers returning from the French wars, and perhaps a third of the entire population of the country died. No statistics are available to show how this part of England was affected, but it is not likely that Yardley would escape entirely, situated on or near two main roads only 60 miles from London. There is a certain amount of evidence that Furtho became depopulated and abandoned at this time. Thomas de Ferrers however did survive the Plague, and when he died in 1353 his property eventually came to a Sir Edward Despencer whose widow and son in 1363 gave Moor End to Edward III in return for land at Burley in Rutland. (Cal.Pat.Rolls and Cal. Ancient Deeds). One wonders what Yardley people thought when they knew the King intended to finish the castle. What did he mean by it? Surely he would not live in such a an out-of-the-way spot. Even if he did not live there, there would be officials coming and going all the time, and it would be much more difficult to help themselves to deer and wood from the forest.
On October 1st 1363 the King appointed John de Newenham, parson of Cheadle to be the Clerk of the Works and Richard Wydeville of Grafton to be Supervisor. They were directed to take hewers of stone, masons, carpenters, and other artificers and workmen; to provide stone, timber and all other necessaries, and cartage to bring in same; to make all payments of wages to the workmen and other necessary payments. John de Newenham was further instructed to bring back all the workmen who had withdrawn from the works without licence, and to arrest all others found contrarient or rebellious and to imprison them until they gave security to serve in the works. He was also to set up a jury to inquire into the timber, stone, etc. which had been taken away, and to have it brought back again. His wages were to be the same as William de Mulsho received when he was Clerk of the Works at Windsor Castle. (Cal.Pat.Rolls).
The building seems to have gone on for the next two years, during which time £861 was spent on it. Men were paid a lump sum of 60/- for making a new pit at the quarry at Cosgrove containing 24 feet each way; removing the earth and ragstone in order to get at the freestone there, and a further £95 for digging 14,300 feet of stone, and 13/4 per 100 foot for removing same. Iron at 16d the piece was fetched from Gloucester. Other items were stone slates for eaves and guttering; 30 crested tiles for the roof ridge of the hall at 11/2 d each; pitch for blackening hinges and hooks, and tin for whitening same; 12 latches and snatches flower tinned for various doors, and 24 rings with flowers, and nails for same; sprigs and other nails cost 14d the thousand. Sixty pounds of hard fish for glue-making; was bought from a Northampton fishmonger named Brassinbourne at a cost of 18d. A block of bronze was bought for the roof louvers to adjust so smoke could escape from the hall, indicating a central fireplace. Oak trees were obtained mainly from the forest, but a special purchase was made of 12 regalbords, i.e. large-sized oak scantlings, from Riga in the Baltic, for making the head of the King’s bed. William the Bellgetter was paid 7/6 for a bell weighing 18lb to be rung at various times to stir up the workmen to hasten their work, and candles were purchased so the men could work by night in order in order to finish in time for the King’s arrival.
|
|
Victoria County History - A History of Northampton: Volume 5: The Hundred of Cleley - Philip Riden
A long-term industry in Cosgrove was quarrying. The names Quarry Bridge and Quarry Field occur in the 16th century, and by the mid 19th century there was a directly managed quarry on the Mansel estate, which supplied stone for the building of Stantonbury church, not far across the border in Buckinghamshire. By 1881 the limestone was almost worked out, though sand and gravel continued to be mined. In the middle of the last century two local builders set up the Cosgrove Sand & Gravel Company, and also operated a haulage and plant hire business. The company was voluntarily wound up in 1960-2.
|

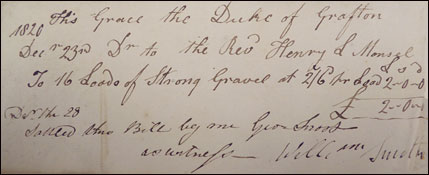

1820 Dec 26th - Gravel account Revd Henry L Mansel for 16 loads of Strong Gravel £2-0-0
|
UNDATED
(6) BURIALS (SP781427). West of Rectory Farm, on glacial gravel at 85m above OD. Several skeletons were found in a gravel-pit in about 1893-4 (OS Record Cards)
Quarrying appears to have taken place in the south of the parish over a long period, given the occurrence of the names Quarry Field and Quarry Bridge in the 16th century. In the mid 19th century there was a directly managed quarry on the Mansel estate, which in 1860 supplied stone for the building of the church at Stantonbury (Bucks.). In 1881 the quarry, which had evidently supplied limestone to Heyford ironworks in previous years, was described as almost worked out.When the estate was sold in 1919 one of the parcels of accommodation land included a chalkpit and limekiln and another what was described as a profitable sand and gravel pit, both of which were then in hand.
|
|
|
According to Morton (1712), 'The Quarries of most ancient Note in all Southern Parts of the County are those at Cosgrove, which have been digg'd under Ground in the form of Caves or Vaults; large Stacks of the Quarry-Stone being left standing at due Distance to support the Roof'. The hills and hollows of former quarries can still be seen south west of the village. In 1927, Beeby Thompson said he could remember two doorways giving access to the underground workings from the rock face on the south side of the road but they were no longer accessible; two metres of building stone however could still be seen below three or four metres of overlaying limestone beds (this quarried area south of the road was infilled in the 1980s).
|
|

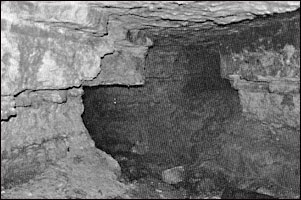

Cave in Cosgrove Quarry
|

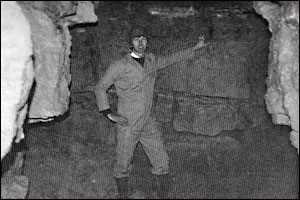

Chris Bardell exploring the caves 17th January 1992
|
The quarries were ideally located on the valley slope just 700 metres from the River Ouse and equidistant from Watling Street. They may have been started by the Romans (a Roman building stood on the same slope, about a kilometre to the east), but they were probably at least medieval. Today old buildings in the village provide the only examples likely to be local Cosgrove stone. The church has some Norman work in the chancel and a fourteenth-century tower with mouldings.

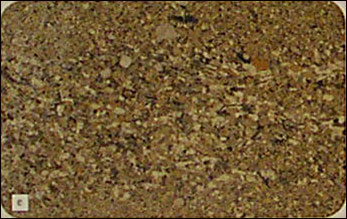

The stone is cream-coloured and streaky, cross-bedded, with thin layers of coarser and finer texture, composed of granular shelly debris (oysters and other bivalves, occasional urchin spines) in a not very prominent matrix. Some stone encloses lumps of fine-grained white limestone; the rubblestone also includes a laminated variety.
|
This cross section shows the layers that gave rise to Cosgrove's quarry deposits and its line of wells. Note the vertical fault line in the centre.
|
Cosgrove Hall was built in the early eighteenth century, perhaps (as noted by Pevsner) by master-mason John Lumley of Northampton (1654-1721), for barrister Henry Longueville. It is faced in cream ashlar, the blocks streaked by cross-bedding, composed of shelly material similar to the church masonry. The Grand Union Canal runs through Cosgrove beneath an architecturally interesting bridge built in 1800, mostly in coarsely granular limestone with ribbed weathering, possibly a local variety.
|
|
King Henry VIII Grafton House Building Accounts - Materials from Cosgrove |
Date |
Doc ref: |
Forename |
Surname |
Place |
Details |
Payment |
Type |
1537 |
Bodleian |
Thomas |
Pavy |
Cosgrove |
for 8 lodes of freestone of hym had to make mantells, james, dripes and quoynes for the said chymney at 12d the lode undigged |
8s |
Freestone |
1537 |
Bodleian |
Humfrey |
Warde |
Cosgrove |
24 quarters of lyme imployed by free masons, plasterers and tilers at 16d the quarter 32s. |
32s |
Lime |
1537 |
Bodleian |
Humrey |
Warde |
Cosgrove |
Cosgrave 16 quarters lyme at 16d the quarter |
21s 4d |
Lime |
1539 |
N. U. L |
Thomas |
Aswoode |
Cosgrave |
for the brekyng of hys grownde wher the sand was digyd |
10d |
Sand |
|
|
King Henry VIII Grafton House Building Accounts - Carriage by men from Cosgrove, including stone and sand from the Cosgrove Quarries |
Date |
Doc ref: |
Forename |
Surname |
Place |
Carriage of |
Per load |
Payment |
Loads |
Type |
1537 |
Bodleian |
Thomas |
Spencer |
Cosgrove |
for 14 lodes of sand 7s. |
|
7s |
14 |
Sand |
1537 |
Bodleian |
William |
Gardyner |
Cosgrove |
35 lodes from Castell Thorpe 14s.-4d |
|
14s 4d |
35 |
Stone |
1537 |
Bodleian |
Cuttbert |
Emerson |
Cosgrove |
35 lodes from Castell Thorpe 11s.-8d. |
|
11s 8d |
35 |
Stone |
1537 |
Bodleian |
Thomas |
Spencer |
Cosgrove |
35 lodes from Castell Thorpe 4s.-8d |
|
14s 8d |
35 |
Stone |
1537 |
Bodleian |
William |
Spencer |
Cosgrove |
20 lodes from Castell Thorpe 6s.-8d |
|
6s 8d |
20 |
Stone |
1537 |
Bodleian |
Thomas |
Hayswood |
Cosgrove |
11 lodes from Castell Thorpe 3s.-8d. |
|
3s 8d |
11 |
Stone |
1537 |
Bodleian |
John |
Olys |
Cosgrove |
14 lodes from Castell Thorpe 4s.-8d |
|
4s 8d |
14 |
Stone |
1537 |
Bodleian |
John |
Olys |
Cosgrove |
14 lodes from Castell Thorpe 4s.-8d |
|
4s 8d |
14 |
Stone |
1537 |
Bodleian |
Thomas |
Becham |
Cosgrove |
11 lodes from Castell Thorpe 3s-8d, |
|
3s 8d |
11 |
Stone |
1537 |
Bodleian |
Jaques |
Rigby |
Cosgrove |
16 lodes from Castell Thorpe 5s.-4d. |
|
5s 4d |
16 |
Stone |
1537 |
Bodleian |
Walter |
Ryvers |
Cosgrove |
16 lodes from Castell Thorpe 5s.-4d |
|
5s 4d |
16 |
Stone |
1537 |
Bodleian |
Robert |
Archer |
Cosgrove |
71 lodes from Castell Thorpe and Roodhill and Harttwell quarres 23s-8d |
|
23s 8d |
71 |
Stone |
1537 |
Bodleian |
William |
Hall |
Cosgrove |
17 lodes from Castell Thorpe 5s.-8d. |
|
5s 8d |
17 |
Stone |
1537 |
Bodleian |
Thomas |
Assewood |
Cosgrove |
Carridge of sand at 5d a lode to the aley from Cosgrave |
5d |
5s 10d |
14 |
Sand |
1537 |
Bodleian |
Jaques |
Rygsby |
Cosgrove |
Carridge of sand at 5d a lode to the aley from Cosgrave |
5d |
4s 7d |
11 |
Sand |
1537 |
Bodleian |
William |
Gardyner |
Cosgrove |
Carridge of sand at 5d a lode to the aley from Cosgrave |
5d |
5s 10d |
14 |
Sand |
1537 |
Bodleian |
Thomas |
Becham |
Cosgrove |
carriage of stone 28 lodes |
|
9s 4d |
28 |
Stone |
1537 |
Bodleian |
John |
Elys |
Cosgrove |
carriage of stone 22 lodes |
|
7s 4d |
22 |
Stone |
1537 |
Bodleian |
Roberd |
Archer |
Cosgrove |
carriage of stone 18 lodes |
|
6s |
18 |
Stone |
1537 |
Bodleian |
William |
Hilles |
Cosgrove |
carriage of stone 18 lodes |
|
6s |
18 |
Stone |
1537 |
Bodleian |
Thomas |
Hayswood |
Cosgrove |
carriage of stone 14 lodes |
|
4s 8d |
14 |
Stone |
1537 |
Bodleian |
John |
Wattson |
Cosgrove |
10 lodes of sand from the pytt to the mannor at 5d the lode |
5d |
4s 2d |
10 |
Sand |
1537 |
Bodleian |
William |
Spencer |
Cosgrove |
for 7 lodes of Potters claye from the Potters pytt of Perry to Grafton for to make the slope bankes of the bowlyng aley 3d. the lode |
3d |
21d |
7 |
Clay |
1537 |
Bodleian |
William |
Spencer |
Cosgrove |
for 5 lodes of Potters claye from the Potters pytt of Perry to Grafton for to make the slope bankes of the bowlyng aley 3d. the lode |
3d |
15d |
5 |
Clay |
1539 |
N. U. L |
John |
Somer |
Cosgrave |
for carriage of 2 loodes of tymber out of the parke of Grafton |
|
8d |
2 |
Timber |
1539 |
N. U. L |
William |
Spensor |
Cosgrave |
for 4 loods sande |
|
16d |
4 |
Sand |
1539 |
N. U. L |
Robert |
Yod |
Cosgrave |
for 2 loods sande |
|
8d |
2 |
Sand |
|
Mortons (natural) History of Northamptonshire, 1732 P110. "The quarries of most ancient note in the southern parts of the county are those at Cosgrave, which have been digged underground in the form of caves or vaults, large stacks of the quarry stone being left standing at due distances to support the roof". Morton also mentions Cosgrove under Red & yellow Freestone of Northampton sand (p101)
Page 145 (Quarry)
[Stalagtites are sometimes found suspended in the fissures] The extremities of the Cosgrave ones are pointed, not with one but with several points; for all the interior part of them is compos’d of Trigonal shoots of Spar with their points directed all the same way, viz, from the thicker to the slenderer end of the body.
|
Cosgrove stone survey 2003
|
Entry No. |
Name |
Architectural Description |
Building Period |
Listing |
Material |
Roof Material |
Rock Type |
Building |
Source of Info |
Notes |
37282 |
Cosgrove Hall |
Country house. Early C18 with C19 and C20 alterations. Limestone ashlar, hipped slate roof and stone internal stacks. H plan. 2 storeys and attic; 7-window range. 2-storey double-depth service wing projects at left end of entrance front. Of coursed squared limestone with 2-span hipped plain tile roof and brick lateral and internal stacks. |
early 18th |
Conservation area. Listed Grade II. |
Stone |
Slate |
LIMESTONE |
Cosgrove Stone , Slate |
IOE - 235247; BLB; Sutherland, 2003, p. 101 |
Stone appears to be have been worked from mines in the vicinity of Cosgrove, and may be as old as the Roman occupation (Sutherland 2003), but may have remained under extraction into the 19th Century. Otherwise stone used in the settlement must have been imported |
37283 |
Church of St Peter and St Paul |
Church. C13, C14 and C15. Repaired 1770-4. Restored 1864 by E.F. Law and 1887-92 by Edward Swinfen Harris. Coursed squared limestone, plain-tile roof to chancel, lead roofs to body of church. Chancel, nave, north aisle and west tower. |
13th Century |
Conservation area. Listed Grade I. |
Stone |
Plain tiles (ceramic) ????? |
LIMESTONE |
Cosgrove Stone |
IOE - 235245; BLB |
Stone appears to be have been worked from mines in the vicinity of Cosgrove, and may be as old as the Roman occupation (Sutherland 2003), but may have remained under extraction into the 19th Century. Otherwise stone used in the settlement must have been imported |
37284 |
Old Dower House |
House. Late C17 with C19 alterations and additions. Coursed squared limestone, plain-tile roof, brick end stacks, that to left on stone base. 2-storey, 3-window range. 2-unit plan. Stone-coped gables with kneelers. |
late 17th |
Conservation area. Listed Grade II. |
Stone |
Plain tiles (ceramic) |
LIMESTONE |
Cosgrove Stone |
IOE - 235244; BLB |
Stone appears to be have been worked from mines in the vicinity of Cosgrove, and may be as old as the Roman occupation (Sutherland 2003), but may have remained under extraction into the 19th Century. Otherwise stone used in the settlement must have been imported |
37285 |
[The Green?] |
Cottage. Mid C17, altered C20. Coursed squared limestone, corrugated asbestos roof over thatch, brick ridge stack on stone base. 2-unit lobby-entry plan. 2 storeys and attic, 3-window range. |
mid 17th |
Conservation area. Listed Grade II. |
Stone |
Other |
LIMESTONE |
Cosgrove Stone |
IOE - 235251; BLB |
Stone appears to be have been worked from mines in the vicinity of Cosgrove, and may be as old as the Roman occupation (Sutherland 2003), but may have remained under extraction into the 19th Century. Otherwise stone used in the settlement must have been imported |
37286 |
The Manor |
Farmhouse. Early C17 with C18 and C19 alterations. Coursed squared limestone, slate roof, brick end and central ridge stacks. 2-unit plan. 2-storeys and attic; 3-window range. Quoins, storey-band and stone-coped gables with kneelers. 2-storey wing to rear right alongside road; probably C18. |
early 17th |
Conservation area. Listed Grade II. |
Stone |
Slate |
LIMESTONE |
Cosgrove Stone , Slate |
IOE - 235255; BLB |
Stone appears to be have been worked from mines in the vicinity of Cosgrove, and may be as old as the Roman occupation (Sutherland 2003), but may have remained under extraction into the 19th Century. Otherwise stone used in the settlement must have been imported |
|
|
|
|
|
